Lorient LVH44 - 100 x 100mm Intumescent Grille

Quantity enquiry

If you would like to order more of this item than we currently have in stock please fill out the form below to make an enquiry with our team.

This field is for validation purposes and should be left unchanged.
Please enter a number greater than or equal to 1.
Back
LVH44 Air Transfer Grille

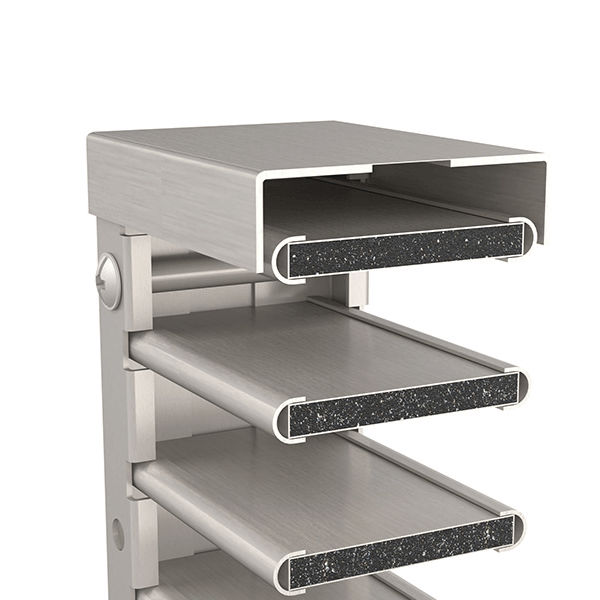

LVH44 Air Transfer Grille close up

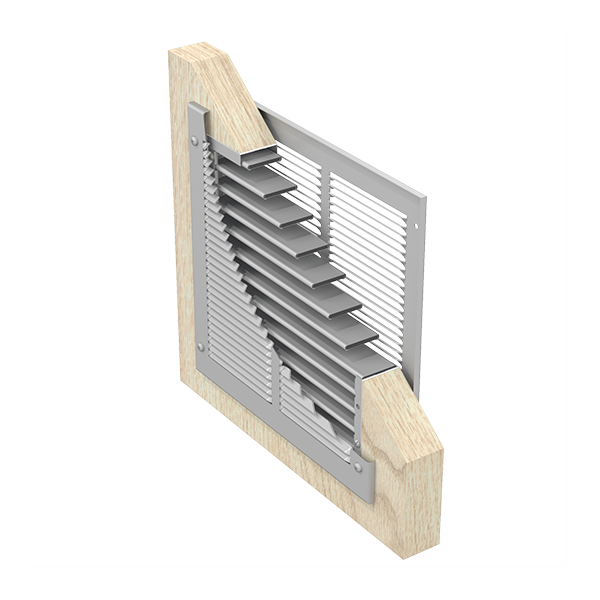

LVH44 Air Transfer Grille in door
LVH44 Air Transfer Grille in wall

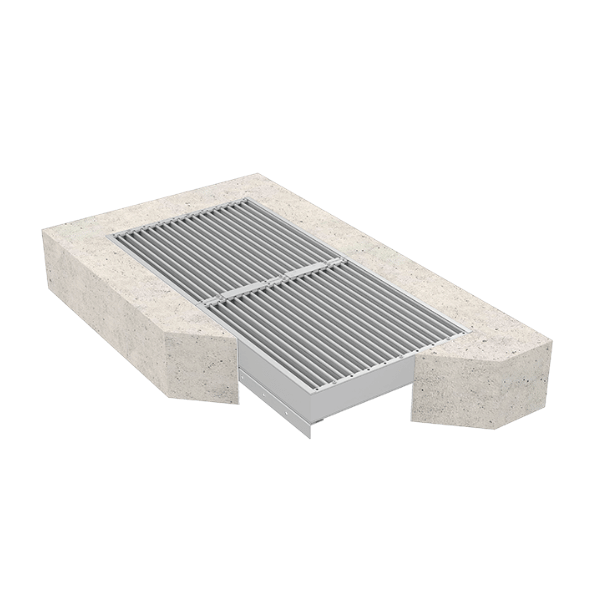

LVH44 Air Transfer Grille in floor
LVH44 Air Transfer Grille in ceiling
15 in stockLVH44 Air Transfer GrilleLVH44 Air Transfer Grille close upLVH44 Air Transfer Grille in doorLVH44 Air Transfer Grille in wallLVH44 Air Transfer Grille in floor
Bestseller
FD30
FD60

Lorient LVH44 - 100 x 100mm Intumescent Grille

Heavy duty intumescent air transfer grilles designed for use in the aggressive environments often found in industrial premises.

  • Up to 120 minutes fire resistance
  • Complete seal achieved in as little as 2 minutes
  • Excellent airflow characteristics
  • Suitable for external applications

Use with 44mm Liner for FD30 doors & 54mm Liner for FD60 doors.

For both fire and smoke protection, view the LVH44S.

We can accommodate bespoke sizes or larger quantities - please get in touch with our team on 02920 857 959.

Product Code: LVH44 - 100

Need more than 15?

If you would like to order more of this item than we currently have in stock, please click here and fill in the form that appears to make an enquiry with our team.

£50.29 Inc. VAT£41.91 Exc. VAT
EXC VAT INC VAT
- +
Add to basket Item added to cart successfully. View basket
Orders placed today will be dispatched on Monday**Applies to UK mainland customers only - find out more delivery information

Description

Specifications

FAQs

Description

Features

  • Can be used to provide fire resistance of up to 120 minutes
  • Complete seal achieved in approximately two minutes
  • Excellent airflow characteristics and silent efficient operation with normal to high air velocities
  • Can be used in high humidity
  • Steel frame contributes to fire resistance by preventing the inward deformation of surrounding structures thus protecting the intumescent materials
  • Resistant to vibration damage

Application

  • Can be used in ducting where the steel and aluminium casing protects the intumescent material from the corrosive effect of hot gases travelling at high velocities
  • Suitable for external applications
  • Suitable for timber and steel doors, walls and ducts
  • Screwed and bedded in Lorient Intumescent Sealant
  • Use with 44mm Liner for FD30 doors & 54mm Liner for FD60 doors
  • Metal cover grille is optional

Test evidence

  • Certifire certification CF564
  • Fire: BS 476-20 & 22:1987
  • Fire: BS EN 1643-1:2014
  • Fire: BS EN 1364-5:2017
  • Fire: NEN 6069:2005+A1:2016

We can accommodate bespoke sizes or larger quantities – please get in touch with our team on 02920 857 959.

Specs

  • Height: 100mm
  • Width: 100mm
  • Brand: Lorient
  • ATG type: Fire
  • Product badge: Bestseller, FD30, FD60
  • Door Material: Steel, Timber
