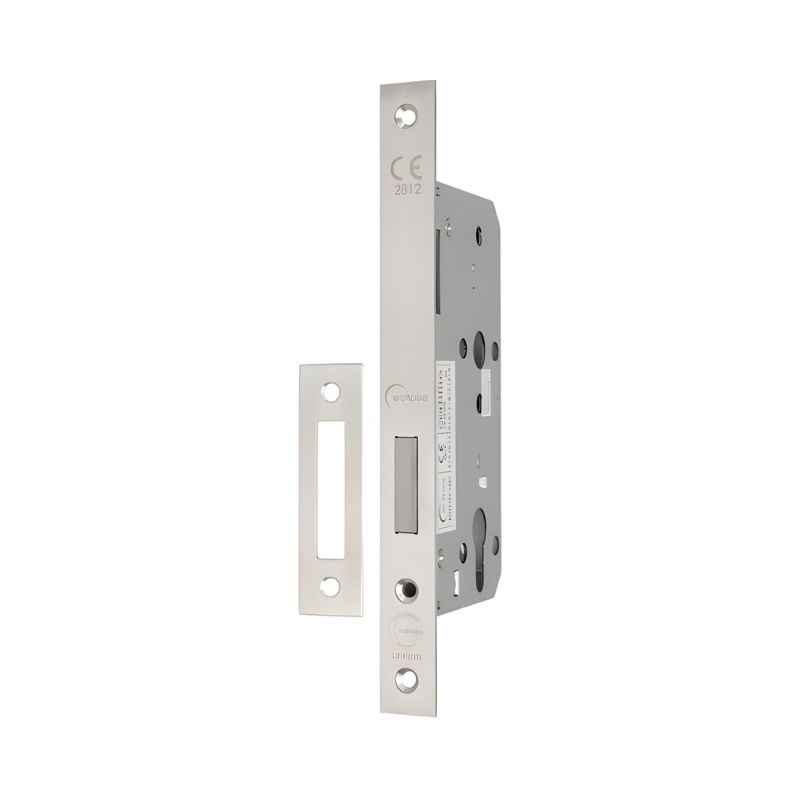

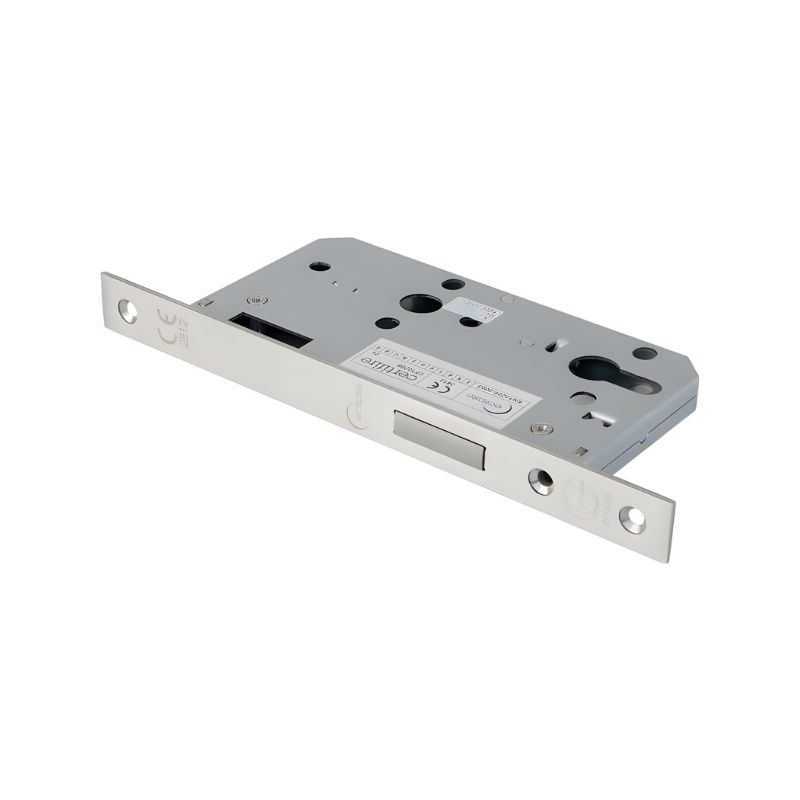

Eclipse DIN Euro Deadlock - 60mm Backset - Square Forend - Satin Stainless Steel

The Frisco DIN Euro Deadlock is a heavy-duty 60mm backset lock case engineered to provide high-security locking with a Euro cylinder on fire-rated doors in commercial and public environments.

This deadlock is fully tested to BS EN 12209:2016 and, crucially, carries Certifire approval (CF577). This third-party certification provides undeniable proof that it meets the rigorous standards for use on FD30 to FD120 timber fire doors, as well as steel doors up to FD240. For the installer, this means total confidence that the hardware is fit for purpose, will pass any site inspection, and upholds the integrity of the fire door assembly without question.

Beyond compliance, this lock is built to last. It boasts the highest possible Grade X durability rating after being tested to 200,000 cycles, along with the top Grade 4 for corrosion resistance. This exceptional robustness guarantees it will withstand heavy traffic and demanding conditions. The lock's DIN standard dimensions ensure consistent, predictable fitting.

• Backset: 60mm
• Centres: 72mm
• Case Size: 90mm x 165mm
• Forend: 22mm (Square and Radius included)
• Finish: Satin Stainless Steel
• Mechanism: Euro Profile Cylinder (not included)
• Certification: BS EN 12209:2016 (Grade 3), Certifire (CF577)
• Fire Rating: FD30-120 (Timber), FD240 (Steel)
• Durability: Grade X (200,000 cycles)
• Corrosion Resistance: Grade 4 (240 hours)
• Included: Strike plates (square & radius), dust box, fixings
• Guarantee: 5-Year Mechanical
