CCE Superior Rebated Drop Down Seal - 830mm

Quantity enquiry

If you would like to order more of this item than we currently have in stock please fill out the form below to make an enquiry with our team.

Back

Rebated drop down door seal on an open door

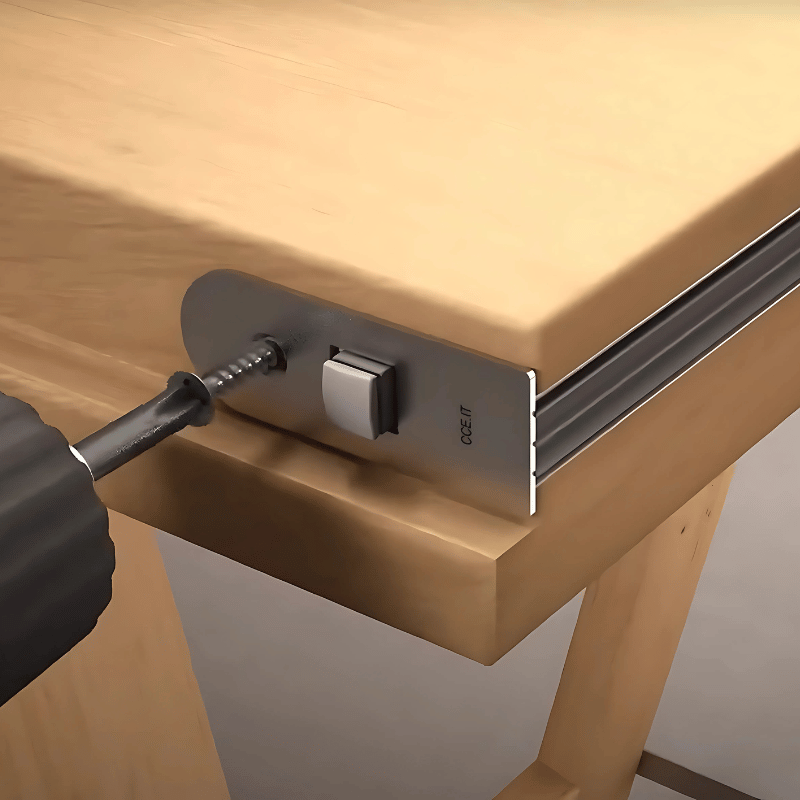

Installation of the Superior drop down seal

501 in stock CCE Superior rebated drop down seal

Certifire Approved

FD30

FD60

CCE Superior Rebated Drop Down Seal - 830mm

The CCE Superior Drop Down Door Seal is designed to form an effective barrier against fire and smoke, which is activated by the closing action of the door, meaning the seal only drops down when the door is closed.

This high-performing drop down seal is Certifire approved, with a 120 minute fire resistance rating.

Available in a range of sizes.

Fixing screws are supplied.

Product Code: FS1333

Need more than 501?

If you would like to order more of this item than we currently have in stock, please click here and fill in the form that appears to make an enquiry with our team.

Select Sizes

£29.75 Inc. VAT£24.79 Exc. VAT

EXC VAT INC VAT

- +

Item added to cart successfully. View basket

Next working day delivery available on orders placed before 4pm**Applies to UK mainland customers only - find out more delivery information

Downloads and data sheets

CCE Brochure Datasheet Technical Datasheet Superior Fitting Instructions Certifire Certification – CF5995 Exova Smoke Certification Smoke Leakage Report

View more downloads

Acoustic Test Report Summary of Tested Fire Resistance

Description

Specifications

Reviews

FAQs

Description

The CCE Superior Drop Down Door Seal is designed to form an effective barrier against fire and smoke which is activated by the closing action of the door, meaning the seal only drops down when the door is closed.

The seals are available in a variety of lengths and are supplied complete with screws to ensure quick and easy fitting.

Features

Fire resistance rating of 120 minutes
Acoustically tested achieving up to 48dB Rw
Smoke tested to BS EN 1634-3: 2004
Suitable for timber doors
Self-extinguishing therm type high quality co-extruded seal
17mm maximum drop
Endurance tested to 200,000 cycles

Location

Single swing doors.
For use on both right and left handed doors.

Min/max gap size

1mm/17mm.

Standard lengths

330mm, 430mm, 530mm, 630mm, 730mm, 830mm, 930mm, 1030mm, 1130mm and 1230mm.
Note: Each length can be cut down by 150mm.
The 330mm can be cut back to 280mm, and the 430mm to 295mm.

Fixing

Fixing screws are supplied. This seal is mortised.

Adjustment

Self-levelling on uneven surfaces. Can be adjusted independently of the fixing screws.

Specs

Brand: CCE
Length: 830mm
Rebated or surface mounted: Rebated
Range: Superior
Drop: 17mm

Reviews

FAQs

Can this be used with a sliding/pocket door, would it be too difficult to overcome the mechanism when closing the door?

The CCE SUperior has no test data for sliding doors.

You would need to look at the Lorient LAS8001M which has test details for timbre sliding doors, pelase email us for futher details.

What size of groove depth and width in the door is required to fit this CCE SUPERIOR REBATED DROP DOWN SEAL – 830MM?

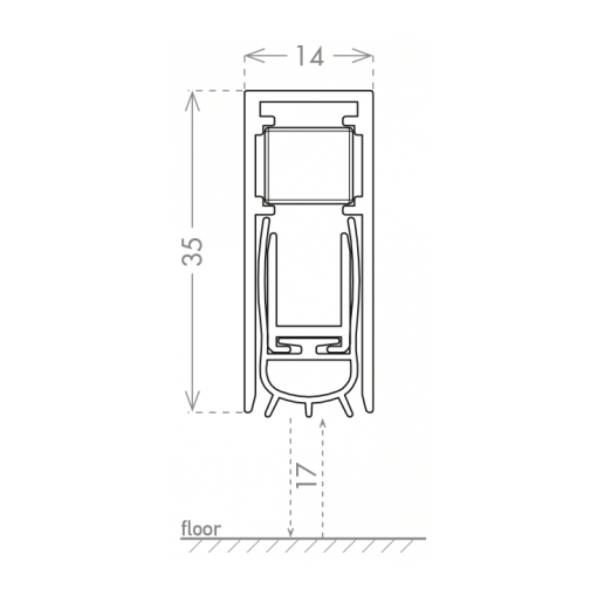

The rebate required is 35mm(h) and 14mm(w), details can be located in the datasheet on the download tab.
