CCE Trend Rebated Drop Down Seal - 430mm

• Suitable for 30 and 60 minute timber fire doors
• Great acoustic performance of up to 39dB Rw
• Seal activated by the closing action of the door
• Tri-extruded tubular seal in self-extinguishing TPE

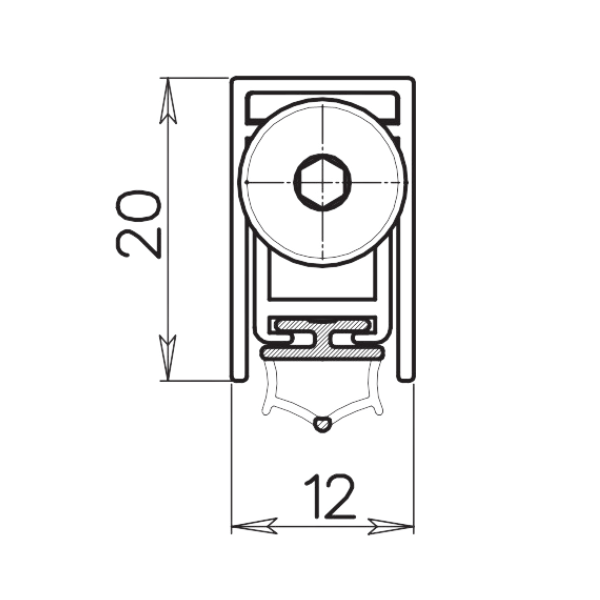

• Small in its dimensions - 12 x 20mm

Min/max gap size

• 1mm/14mm

Standard lengths

• 430mm, 530mm, 630mm, 730mm, 830mm, 930mm, 1030mm, 1130mm and 1230mm

*Note: Each length can be cut down by up to 200mm.
The 330mm can be cut back to 280mm, and the 430mm to 295mm.

Fixing

• Rebated centrally into the base of the door leaf

Adjustment

• Self-levelling on uneven surfaces
• Self directing metal plunger with nylon cap, adjustable with 3mm Allen wrench

Testing

• Smoke tested to BS EN 1634-3:2004
• Endurance tested to 200,00 cycles
• Acoustically tested achieving up to 39dB Rw
• Certifire approved - CF5995
