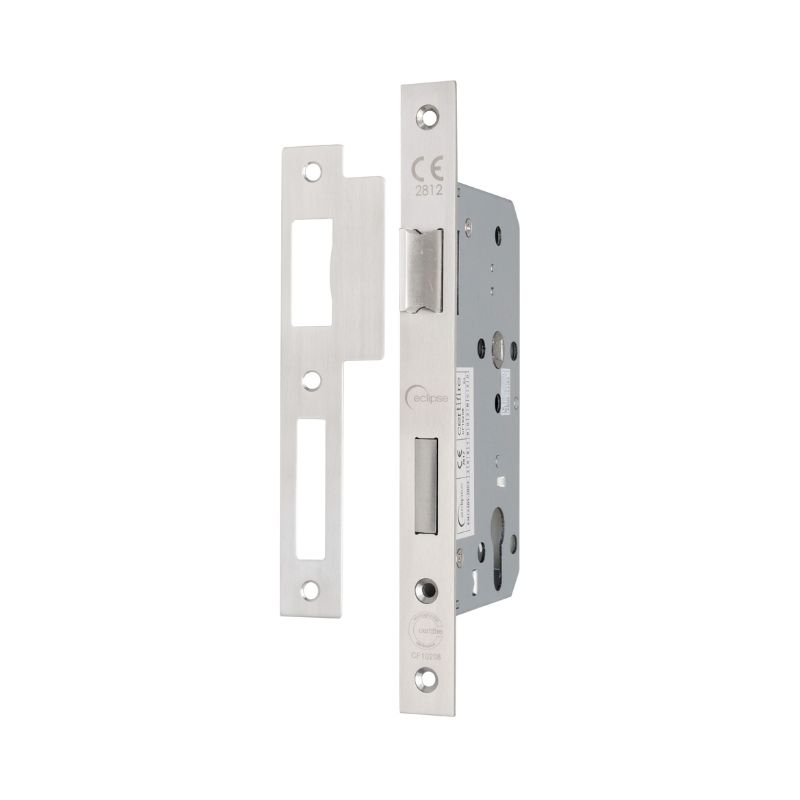

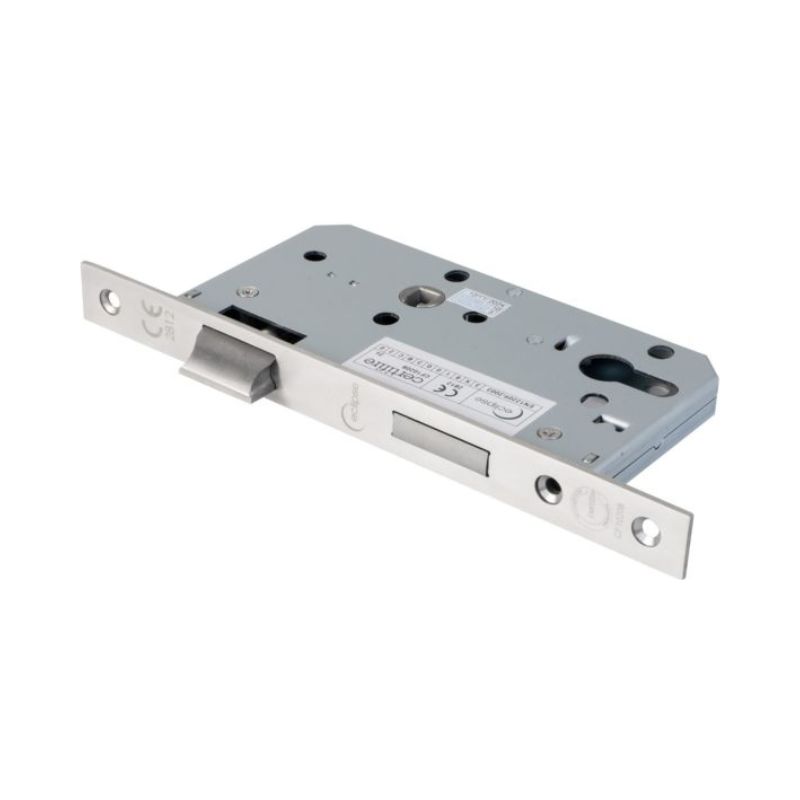

Eclipse DIN Euro Sashlock - 60mm Backset - Square Forend - Satin Stainless Steel

A Certifire-approved DIN Euro sashlock with a 60mm backset, engineered to provide key-operated deadbolt locking and latch operation via lever handles on high-traffic commercial fire doors.

This lock is built for jobs where compliance is non-negotiable and reliability is paramount. It is CE marked and Certifire approved, providing the documentation needed to pass rigorous site inspections on FD30 to FD120 timber or FD240 steel fire door sets. Crucially, it has been tested to the highest durability standard, BS EN 12209 Grade X. This involves surviving 200,000 cycles with a 120N side load on the latch bolt, proving it will continue to function even with air pressure issues or slight door misalignment, eliminating the risk of failed latches and costly return visits.

Engineered for professional efficiency, the lockcase features a grip-tight, spring-assisted follower that prevents the lever droop that often leads to client complaints. The DIN-standard dimensions, reversible latch bolt, and suitability for bolt-through furniture make it a versatile and dependable choice for both new installations and retrofits. Constructed from Grade 304 stainless steel, it also boasts the highest Grade G rating for corrosion resistance, ensuring a long-lasting, quality finish.

• Certification: BS EN 12209
• Fire Rating: FD30 to FD120 on Timber Doors, FD240 on Steel Doors
• Third-Party Accreditation: Certifire Approved (CF10208)
• Markings: CE Marked

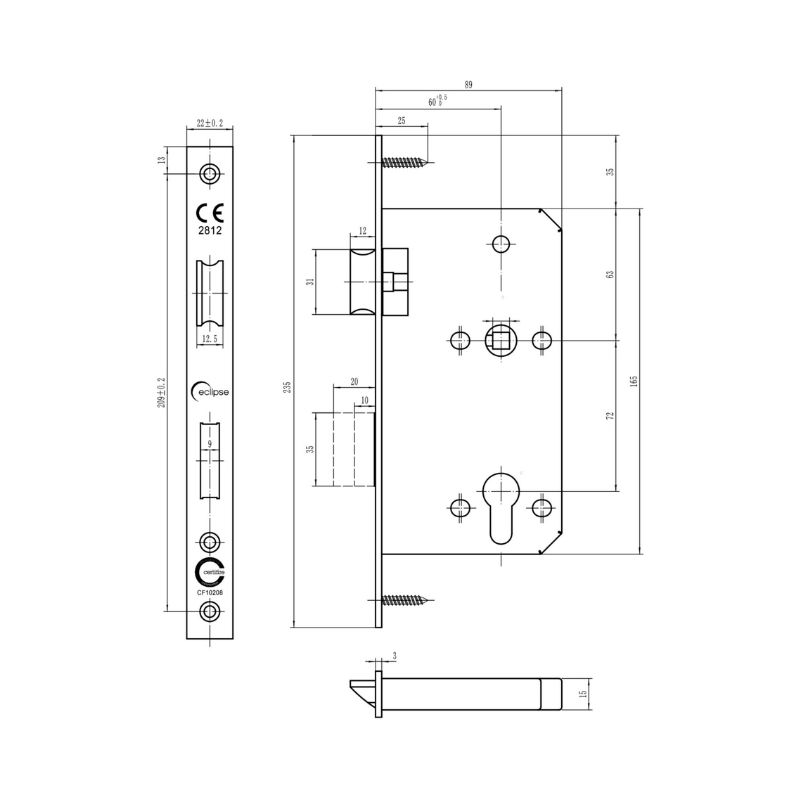

• Backset: 60mm
• Case Size: 165mm x 88mm
• Forend: 22mm x 235mm Square
• Material: Grade 304 Stainless Steel
• Guarantee: 10-Year Mechanical Guarantee
