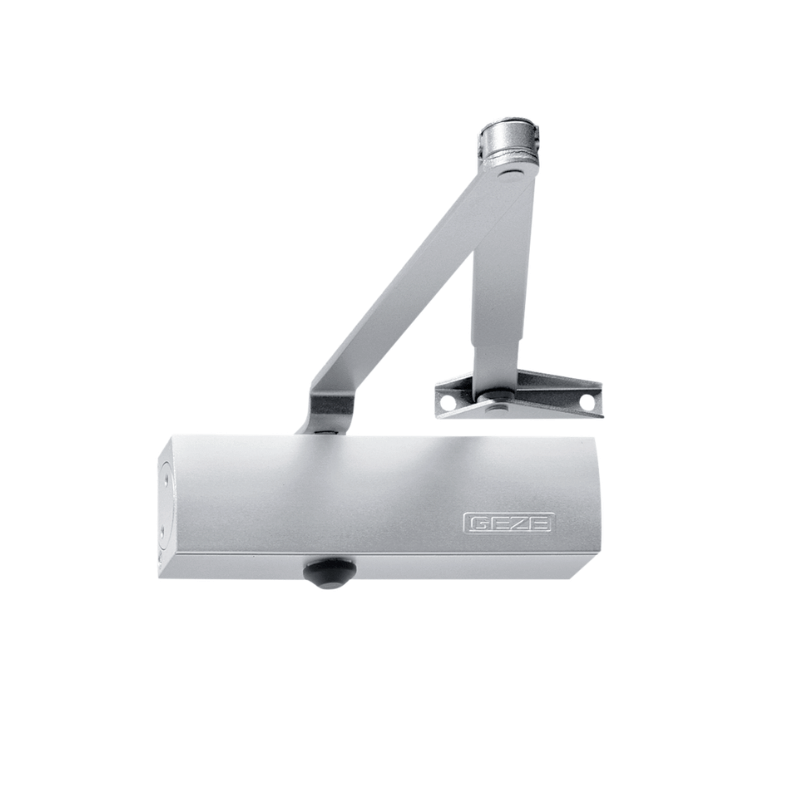

GEZE TS1500 Overhead Door Closer - EN3/4 Silver

The GEZE TS1500 overhead door closer provides controlled, automatic closing for interior single-action doors up to 1100mm in width. It features a variable closing force of EN 3 or EN 4, which is simply adjusted by reversing the bearing block during installation, allowing contractors to utilise a single, versatile unit across multiple doorways.

• Reduce installation complexity: The universal, non-handed design allows for both left and right-hand door applications straight out of the box without requiring internal modifications.
• Eliminate unlatched fire doors: An adjustable hydraulic latching action accelerates the door in the final degrees of closing, ensuring it consistently overcomes latch and smoke seal resistance.
• Streamline stock requirements: By offering selectable EN 3 and EN 4 power ratings in one unit, this closer adapts instantly to different door leaf sizes and environmental pressures on site.

Fully tested to BS EN 1154 and BS EN 1634-1, the TS1500 is CERTIFIRE approved (CF 144) for use on timber fire doors up to 120 minutes (FD120). It is approved for projecting arm installation (door mounted on pull face) and parallel arm installation (door mounted on push face) using the manufacturer's supplied screws. Note: Mechanical hold-open arms must not be used on fire-rated doorsets to maintain strict compliance.

• Specifications:
• Power Rating: Selectable EN 3 / EN 4
• Maximum Door Width: 1100mm
• Fire Rating: Timber doors up to 120 minutes (FD120)
• Certifications: BS EN 1154, BS EN 1634-1, CERTIFIRE CF 144
• Closing Speed: Fully adjustable
• Latching Action: Hydraulic, adjustable via link arm
• Opening Angle: Up to 180 degrees
• Mechanism Type: Rack and pinion with standard link arm
• Finish: Silver
• Body Dimensions: 177mm (L) x 50mm (H) x 39mm (D)

To maintain FD120 fire certification on timber doorsets, this closer must be installed in conjunction with correctly specified intumescent perimeter seals.
