Eclipse DIN Bathroom Lock - 60mm Backset - Square Forend - Satin Stainless Steel

Quantity enquiry

If you would like to order more of this item than we currently have in stock please fill out the form below to make an enquiry with our team.

Back

22 in stock Eclipse Din Euro Bathroom Lock

Certifire Approved

FD120

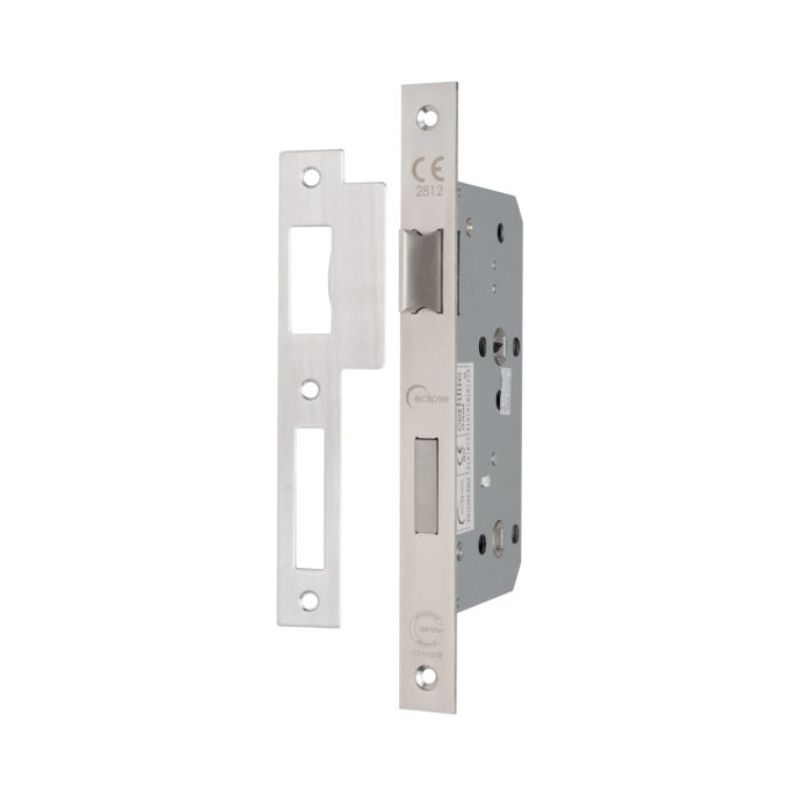

Eclipse DIN Bathroom Lock - 60mm Backset - Square Forend - Satin Stainless Steel

A DIN standard bathroom lock case designed to provide privacy on fire-rated doors, combining lever handle operation with a thumbturn-operated deadbolt and an emergency release.

Privacy Locking: The latch bolt is withdrawn by a lever handle, while the deadbolt is locked from the inside using a bathroom thumbturn.
Emergency Release Function: Allows external access in an emergency by operating the coin-release on the outside of compatible bathroom furniture.
Universal & Fire-Rated: The latch is easily reversible for left or right-handed doors and is assessed for use on FD30 & FD60 timber fire doors.

Product Code: FDH71413

Need more than 22?

If you would like to order more of this item than we currently have in stock, please click here and fill in the form that appears to make an enquiry with our team.

£10.09 Inc. VAT£8.41 Exc. VAT

EXC VAT INC VAT

- +

Item added to cart successfully. View basket

Orders placed today will be dispatched on Monday**Applies to UK mainland customers only - find out more delivery information

Downloads and data sheets

Certifire Certificate - CF10208 Datasheet

Description

Specifications

FAQs

Description

A robust and reliable DIN-standard bathroom lock with a 60mm backset, engineered to provide privacy locking on fire-rated doors while allowing emergency exit, making it ideal for commercial and high-traffic residential projects.

This lock's primary benefit is its full compliance with safety standards. Certified to BS EN 12209 Grade 3 and successfully assessed for use on FD30 - FD120 timber fire doors, fitting this hardware ensures the job meets critical building regulations. For a professional, this means no risk of non-compliance, no liability issues, and the confidence that you are installing a proven, life-saving component as part of a certified fire door assembly.

On-site efficiency is built-in. The standardised DIN case dimensions guarantee a consistent footprint, making it a fast, drop-in replacement for any DIN-prepped door, eliminating the need for extra routing. Furthermore, the latch bolt is easily reversible without having to open the lock case.

Certification: BS EN 12209:2003 Grade 3
Fire Rating: Assessed for use on FD30 & FD60 timber doors
Backset: 60mm
Centres: 78mm
Case Size: 165mm x 88mm
Follower: 8mm Follower with 5mm conversion kit.
Forend Type: Supplied with both 22mm Square & Radius plates
Material: Stainless Steel Forend, Strike Plate & Follower
Fixings: All necessary fixing screws included

Recommended for use with the Eclipse Bathroom Thumbturn & Release – Satin Stainless Steel

Specs

Brand: Eclipse
Backset: 60mm
Centres: 78mm
Fire Rating: FD120, FD30, FD60, FD90
Door Material: Steel, Timber
Lock type: Bathroom Lock, Din Lock
Corner Shape: Square
