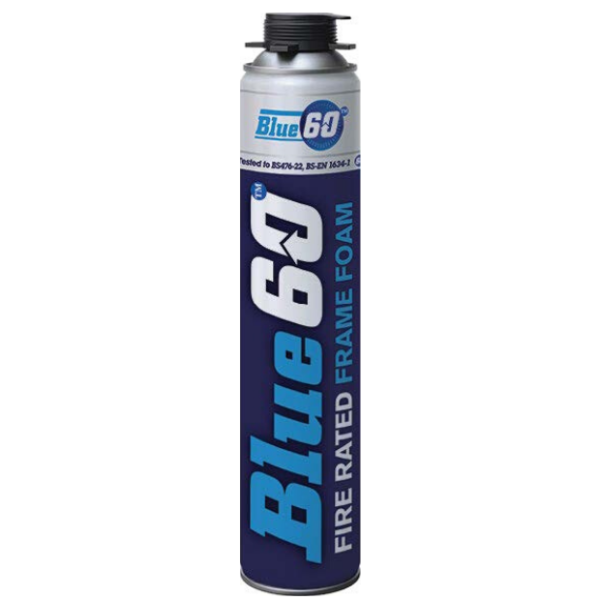

Blue 60 Fire Rated Frame Foam 750ml (Pack of 12)

Features

• 30 & 60 minute fire tested to BS-EN 1634-1 & BS476-22
• Tested in full size single & double doorsets, not linear gaps
• No additional mastics or sealants required
• Acoustically tested to full doorset up to 43dB
• Tested in both metal and timber stud partitioning
• Tested with softwood, MDF & hardwood frame sections
• Tested with gaps between 7mm & 30mm
• Tested in a retro-fit scenario to allow use for rectification
• Blue in colour for identification purposes
• Fire rated packers must be used in conjunction with foam

Installation Guide

The doorset installation should be in accordance with BS476-22 / BS-EN 1634-1 and manufacturer's guidelines.

• During the application, the temperature of the can and room should be between 5 °C and 30 °C.
• Frame/wall surface must be free from dust and grease.
• Moistening the surfaces before and after the application will ensure faster curing and increase the bonding strength.
• Tested with gaps between 7mm and 30mm.
• Where fixing points occur pack securely using Blue 60 fire rated packers.
• Screw on the applicator gun/nozzle and shake can.
• Hold the can upside down and activate the foam by pressing the valve.
• IMPORTANT - The junction between the door frame and the substrate should be fully filled with Blue 60 fire rated foam.
• Architraves can then be fitted over un-cured foam or alternatively foam can be allowed to cure and then be removed mechanically.
