ARRONE AR8180 Ball Bearing Grade 13 Fire Door Hinge - Satin Stainless Steel (Pack of 2)

Quantity enquiry

If you would like to order more of this item than we currently have in stock please fill out the form below to make an enquiry with our team.

Back

61 in stock Arrone Hinge Square Pack of 2

Certifire Approved

FD30

FD60

ARRONE AR8180 Ball Bearing Grade 13 Fire Door Hinge - Satin Stainless Steel (Pack of 2)

ARRONE AR8180 grade 13 ball bearing hinges with square corners.

Fire tested in accordance with BS EN 1634-1 making them suitable for use on timber fire doors up to 120 minutes.

CE marked and Certifire approved.

Satin stainless steel.

Pack of 2.

Product Code: EEAR8180

Need more than 61?

If you would like to order more of this item than we currently have in stock, please click here and fill in the form that appears to make an enquiry with our team.

Select Corner Shape

Select Pack Size

£5.74 Inc. VAT£4.78 Exc. VAT

EXC VAT INC VAT

- +

Item added to cart successfully. View basket

Orders placed after 4pm will be dispatched the next working day**Applies to UK mainland customers only - find out more delivery information

Downloads and data sheets

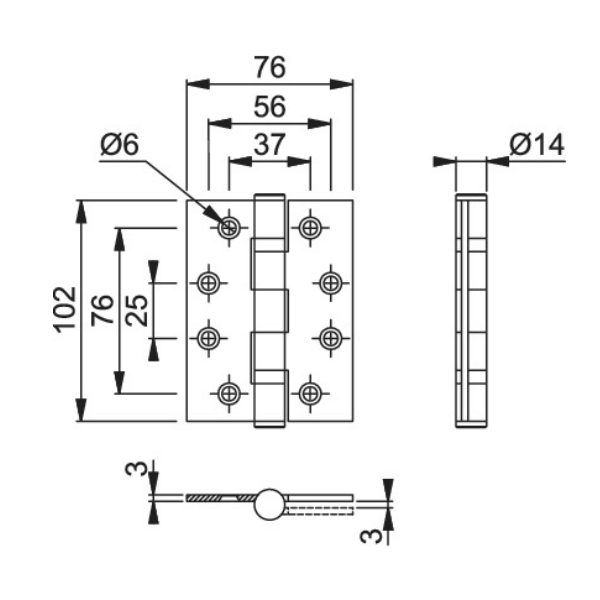

Datasheet Technical Drawing Certifire Certificate – CF369 Declaration of Performance

Description

Specifications

FAQs

Description

Install with intumescent hinge pads to maintain the integrity of the fire door.

Specification

201 grade stainless steel
Grade 13
Square corners
102 x 76 x 3mm
Twin ball bearing
Maximum door mass: 120kg
4 holes templated drilled
Supplied with 16 x stainless steel pozidrive countersunk wood screws
Pack of 2 hinges

Testing

CE & UKCA marked
Certifire CF369
BS EN1935:2002
BS EN 1634 Part 1. Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minute on steel fire doors

Specs

Brand: Arrone
Corner Shape: Square
Finish: Satin Stainless Steel
Hinge Grade: Grade 13
Length: 102mm
Width: 76mm

FAQs
