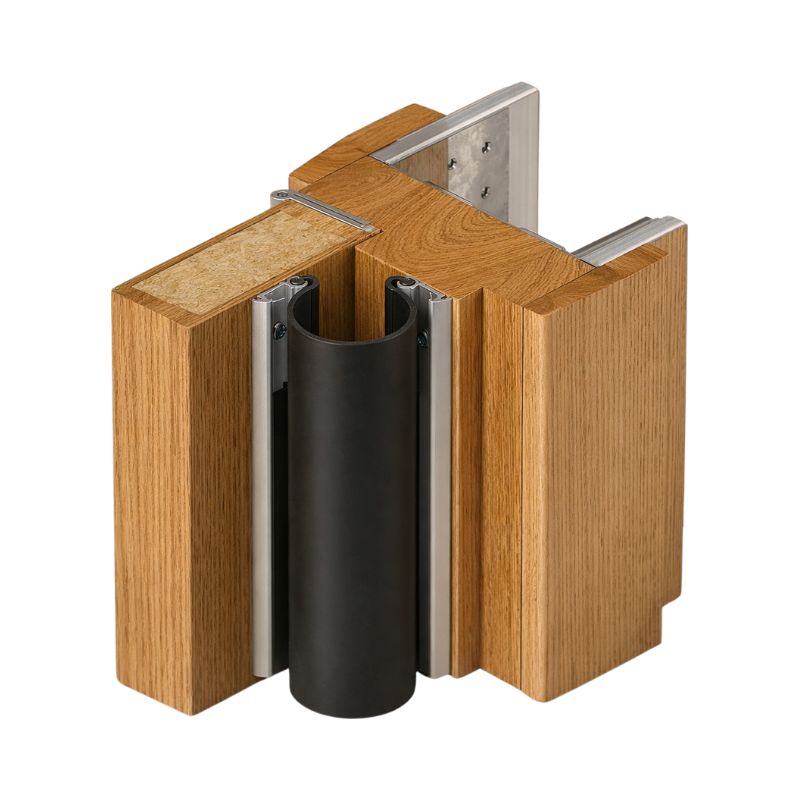

The Raven RP62 is a full-height 2100mm finger guard engineered to prevent finger entrapment on the hinge side of timber or metal pedestrian doors. It provides heavy-duty safeguarding functionality for both butt-hinged and centre pivot doors in high-traffic public buildings.
- Ensure instant sign-off: Fully certified to BS 8613:2017 Class 1, giving you the undeniable evidence required by building control and specifiers.
- Cut maintenance time: The black EPDM rubber seal (part RP362) can be independently replaced if damaged, eliminating the need for a full strip-out and re-installation of the aluminium holders.
- Adjust easily on-site: Slotted fixing holes provide the necessary tolerance during fitting, accommodating real-world door variations and frame movement.
- Deliver a premium finish: Push-in aluminium cover strips completely conceal the supplied zinc-plated fixings, preventing tampering while maintaining a clean aesthetic.
When working in safeguarding-sensitive environments, fitting hardware tested to BS 8613:2017 Class 1 removes any ambiguity during inspections and handover. The RP62 is highly versatile, suiting standard butt-hinged setups or centre pivot doors (note that centre pivot applications require two units). Manufactured by an ISO 9001 certified company, it ensures consistent quality and durability across large-scale commercial installations.
Specifications:
- Length: 2100mm
- Overall Width (Closed): 211mm
- Standard: BS 8613:2017 Class 1
- Seal Material: Black EPDM rubber
- Holder Material: Aluminium
- Cover Strips: Push-in aluminium
- Fixings: Zinc-plated cross recess self-tapping screws (supplied)
- Door Compatibility: Butt-hinged and centre pivot pedestrian doors
- Replacement Seal Part Number: RP362
Q
Do I require addition fittings for this item? Is this just to black protector area and not door fixings?
A
These are supplied with Zinc plated cross recess self-tapping screws
