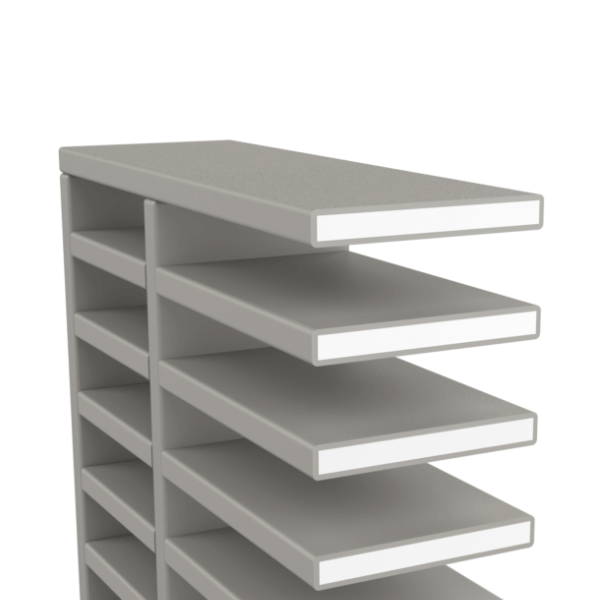

Lorient LVV40 Intumescent Air Transfer Grille 100 x 100mm

Lorient Intumescent Air Transfer Grilles are suitable for ventilation in fire compartment walls or doors. Certifire approved.

For both fire and smoke protection, see the LVV40S for walls or LVN20S for timber and steel fire doors.

We can accommodate bespoke sizes or larger quantities - please get in touch with our team on 02920 857 959.

Product Code: ATG100

Need more than 59?

If you would like to order more of this item than we currently have in stock, please click here and fill in the form that appears to make an enquiry with our team.

Select Sizes

£40.03 Inc. VAT£33.36 Exc. VAT

EXC VAT INC VAT

- +

Item added to cart successfully. View basket

Orders placed today will be dispatched on Monday**Applies to UK mainland customers only - find out more delivery information

Downloads and data sheets

Datasheet Fitting Instructions – Timber Fire Door Fitting Instructions – Rigid Wall Constructions 12 Fitting Instructions – Rigid Wall Constructions 14 Fitting Instructions – Flexible Walls Free area characteristics CF564 Certifire Certificate

Description

Specifications

Reviews

FAQs

Description

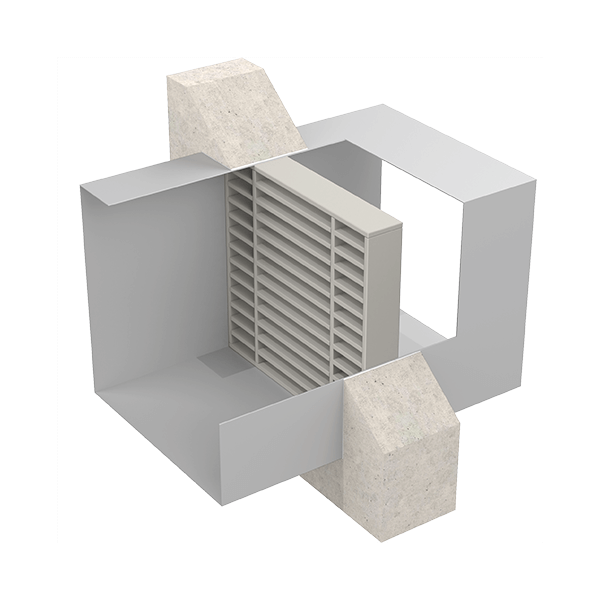

Lorient Intumescent Air Transfer Grilles are used to provide an answer to situations where ventilation is required in fire compartment walls or doors. They can be used for providing dampers in ductwork.

Features

Can be used to provide resistance to fire and hot smoke of up to 60 minutes in doors and walls
EI rating of 120 minutes when used in conjunction with a cover grille
Excellent airflow characteristics which result in silent efficient operation in normal use
Complete seal achieved in approximately five minutes when tested in accordance with BS476 Parts 20/22
Can be used with a cover grille for a neat finish and extra privacy
Allows bi-directional air flow
Simple to install
No maintenance required

Application

Suitable for timber and steel doors, walls and ducts
Screwed and bedded in Lorient Intumescent Sealant
Metal cover grille is optional

Testing

Certifire certification CF564
Fire: BS 476-20 & 22:1987
Fire: BS EN 1643-1:2014
Fire: BS EN 1364-5:2017
Fire: NEN 6069:2005+A1:2016

Specs

Height: 100mm
Width: 100mm
Brand: Lorient
ATG type: Fire
Product badge: Bestseller, FD30, FD60
Door Material: Steel, Timber

Reviews

FAQs

Is The Lorient LVV40 Grille suitable for 60 min fire protection on a steel stud wall (300x 300 x 100mm opening) and what fixings/sealant are recommended ?

These can be used to provide up to 60 minutes resistance to fire & hot smoke. EI rating of 120 minutes when used in conjunction with a cover grille. Please review the dat sheets and fittign instructions for stud walls in the download tab on the product page.
