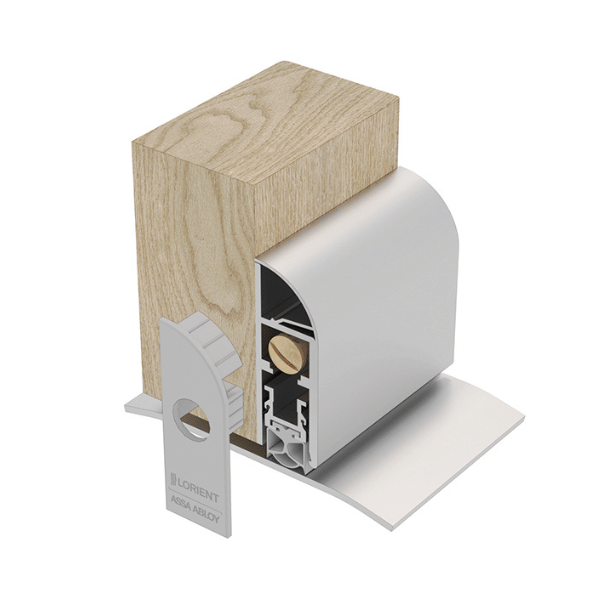

The LAS8009 is a heavy duty, face-fixed automatic drop seal with curved cover plate that conceals fixing screws and presents an exceptionally smooth external aspect.
It features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating force.

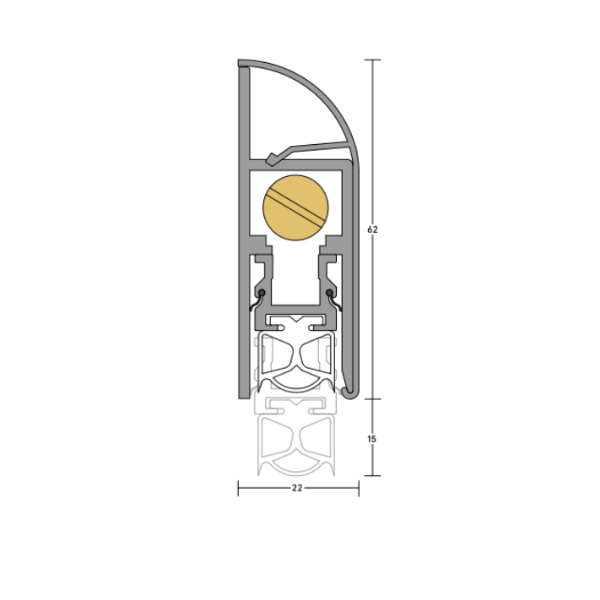

15mm maximum drop.
Fixing screws are supplied.
Key benefits
It requires no power connection.
Tested for acoustic performance with BS EN ISO 10140-2: 2010.
It also meets the smoke leakage performance requirements of BS 9999 when tested in accordance with BS 476 Pt 31.1: 1983.
Tested for reliability, the seal completed 1,000,000 cycles without failure.
Location
Single swing doors.
For use on both right and left handed doors.
Use with
Any threshold plate.
Min/max gap size
1mm/15mm.
Seal material
Black or grey silicone rubber.
Fixing
Fixing screws are supplied, fixing holes are pre-drilled through the flanges.
Adjustment
Self-levelling on uneven surfaces - can be adjusted independently of the fixing screws.
Each length can be cut to the next size down.
