Lorient LAS8001si Rebated Drop Down Seal - 835mm

Quantity enquiry

If you would like to order more of this item than we currently have in stock please fill out the form below to make an enquiry with our team.

Back

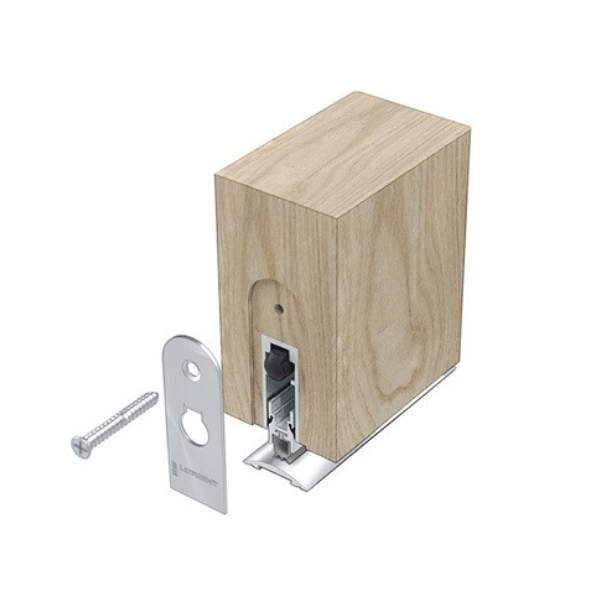

Lorient LAS8001si automatic drop down seal

1437 in stock Lorient LAS8001si automatic drop down seal

Bestseller

Certifire Approved

Lorient LAS8001si Rebated Drop Down Seal - 835mm

The Lorient LAS8001si is an automatic drop seal with a high efficiency mechanism which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces. It requires no power connection.

13mm maximum drop.

Certifire Certificate - CF5179

Available in a range of sizes.

Product Code: LAS8001/835

Need more than 1437?

If you would like to order more of this item than we currently have in stock, please click here and fill in the form that appears to make an enquiry with our team.

Select Sizes

£31.57 Inc. VAT£26.31 Exc. VAT

EXC VAT INC VAT

- +

Item added to cart successfully. View basket

Next working day delivery available on orders placed before 4pm**Applies to UK mainland customers only - find out more delivery information

Downloads and data sheets

LAS8001 Datasheet Fitting Instructions CF5179 Certifire Certificate

Description

Specifications

Reviews

FAQs

Description

Key benefits

Tested for acoustic performance with BS EN ISO 10140-2: 2010
Meets the smoke leakage performance requirements of BS 9999 and is used for sealing the threshold of door assemblies against leakage of ambient temperature smoke, as defined in BS 476: Part 31.1: 1983
Suitable for use on timber fire doors for up to 60 minutes under conditions of BS 476: Pt.20/22: 1987 and BS EN 1634-1: 2014
Tested for reliability, the seal completed 1,000,000 cycles without failure

Location

Single swing doors
For use on both right and left handed doors

Use with

Any perimeter seal
Any threshold plate

Min/max gap size

1mm/13mm

Seal material

Grey or black silicone rubber

Size

Sizes above 1235mm are available on request
Each length can be cut to the next size down
The 335mm can be cut back to 255mm

Fixing

Fixing screws are supplied
This seal is mortised
Pre-drilled radiused end plates are supplied which also secure the product in place. (Square end plates available on request)

Adjustment

Self-levelling on uneven surfaces
Can be adjusted independently of the fixing screws

Specs

Brand: Lorient
Length: 835mm
Drop: 13mm

Reviews

FAQs

I understand these are predominantly for the use of fire doors but is there any reason why this couldn’t be used to refubish a timber front door on a house as a draught excluder?

There is no reason as to why this drop seal couldnt be used for this purpose, however on an external door these may not be suitable in relation to weather exposure.
