Flipfix Metal Door Access Panel - Picture Frame - 600 x 600mm

Quantity enquiry

If you would like to order more of this item than we currently have in stock please fill out the form below to make an enquiry with our team.

This field is for validation purposes and should be left unchanged.
Please enter a number greater than or equal to 1.

Phone

02920 857 959
- +
Add to basket
Back
flipfix metal door access panel
flipfix metal door access panel with door open

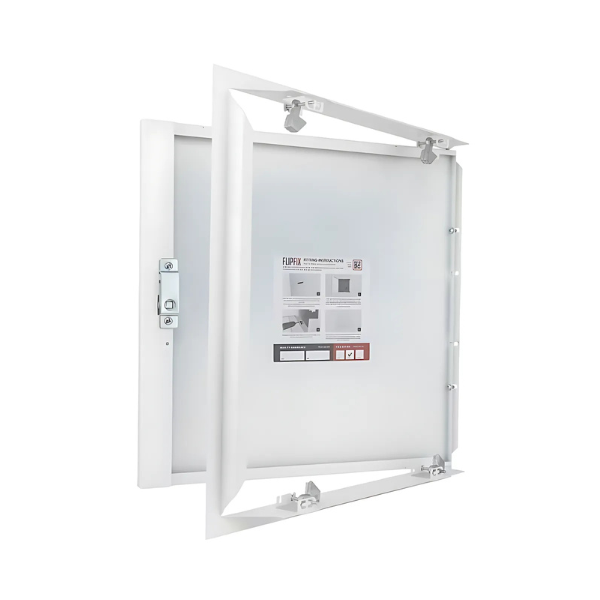

flipfix metal door access panel - back view

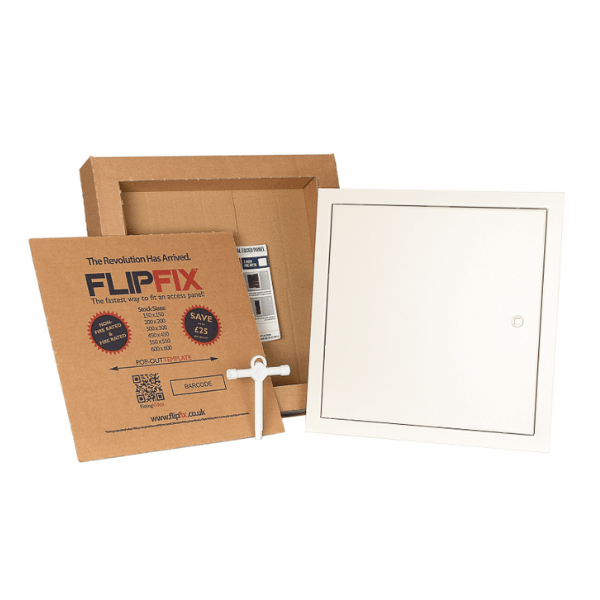

flipfix metal door access panel with packaging
38 in stockflipfix metal door access panelflipfix metal door access panel with door openflipfix metal door access panel - back view
1 Hour Fire-Rated

Flipfix Metal Door Access Panel - Picture Frame - 600 x 600mm

A metal-faced dual-purpose access panel, supplied with the patented FlipFix fitting device for quick and secure installation.

Rated for 1-hour fire resistance, the panel must be installed using the FlipFix clamps to meet fire test requirements.

Its picture frame design provides a sleek, discreet finish.

Suitable for plasterboard wall and ceiling applications.

We can accommodate bespoke orders or larger quantities - please get in touch with our team on 02920 857 959.

Product Code: FSD060MDPFFL600

Need more than 38?

If you would like to order more of this item than we currently have in stock, please click here and fill in the form that appears to make an enquiry with our team.
Select Size600 x 600mm
450 x 450mm300 x 300mm
£86.18 Inc. VAT£71.82 Exc. VAT
EXC VAT INC VAT
Add to Bookmarks
Sign in to add to Project
- +
Add to basket Item added to cart successfully. View basket
Orders placed after 4pm will be dispatched the next working day**Applies to UK mainland customers only - find out more delivery information

Downloads and data sheets

COSH Warranty Information Datasheet Fire Certificate 403834 - Ceiling Test Fire Certificate WF434630 - Wall Test Technical Drawing

Description

Specifications

FAQs

Description

Specification

  • 1 hour fire-rated
  • 600 x 600mm
  • Frame width: 20mm
  • Frame Depth: 50mm
  • 0.9mm zintec steel
  • Estimated unit weight 5.1kg
  • Powder Coated RAL 9010 30% Gloss (Not suitable for painting over)
  • Concealed pin hinge
  • Comes with flush lock as standard
  • Manufactured in the UK

Application

  • Plasterboard interior walls
  • Plasterboard ceilings

Included Components

  • 3-way utility key
  • Pop-out template

Testing

  • 1 Hour fire rated for integrity in a ceiling and wall application tested in accordance with BS EN1634-1: 2014

Installation Guide

  • Use the pop-out template from the packaging to mark the area, and a drywall saw to form your opening
  • Make sure the structural opening is at least 5mm larger than the panel size, back of frame size
  • Position the fixing clamps so they are facing the drywall and place the panel into the aperture
  • Using a screwdriver or drill, tighten the screws until the clamps are firmly secured
  • Lock the door in place and the frame should be flush
