UAP TS008 Soterian Slim 60 Minute Internal & External Letterplates 305mm - Gold

A complete TS008 letterplate set providing certified anti-fishing security, fully compliant with both PAS 24:2022 doorsets and 60-minute fire doors.

TS008 Security & FD60 Fire Rated: A single, certified solution to meet both PAS 24:2022 security and 60-minute Certifire regulations, simplifying compliance.
Unrestricted 90° Door Opening: The ultra-slim 35mm internal profile prevents the flap from hitting the wall, eliminating snagging issues and costly call-backs.
Complete Kit for Sub-2-Minute Fitting: Supplied as a matched internal and external set for a guaranteed fast, straightforward installation on site.

Product Code: ULT12/60/PVDG

Select Fire Rating

£91.78 Inc. VAT£76.48 Exc. VAT

EXC VAT INC VAT

Finish: Gold

- +

Item added to cart successfully. View basket

Orders placed after 4pm will be dispatched the next working day**Applies to UK mainland customers only - find out more delivery information

Downloads and data sheets

Datasheet Certifire Certificate – CF5723 Fitting Instructions BSi Kitemark License UAP Letterplate Brochure UAP Document Q Brochure Letterplate Guarantee

Description

Specifications

FAQs

Description

The UAP TS008 Soterian Slimline Letterplate is stylish, streamlined and secure.

Features

Suitable for 60 minute fire doors
Designed for 54mm doors
Slimline profile
PVD Gold finish
Internal and external frames included
Pivoting stay mechanism reduces internal flap opening for protection against ‘key fishing’ and lock manipulation
No fixings to the exterior of the letterplate, preventing the outer frame being unscrewed from the door externally
Quick and easy five step fitting using 8 screws and a hinge rod

Dimensions

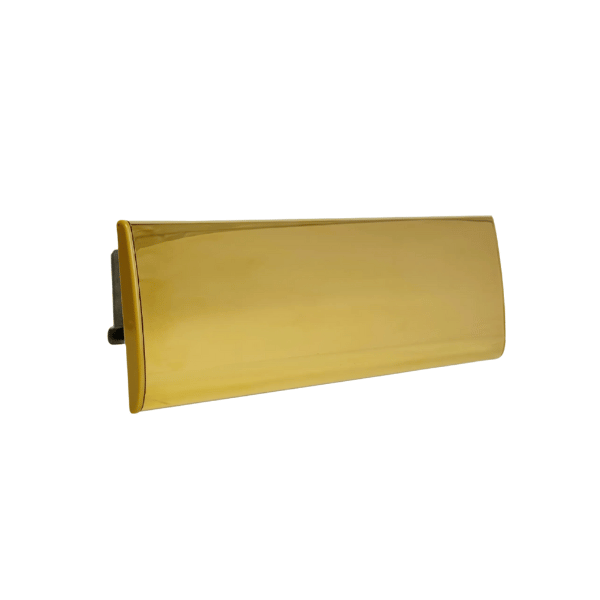

Internal frame sizes:

Width - 298mm
Height - 98mm
Distance between screw holes - 277 x 48mm
Flap projection - 14mm

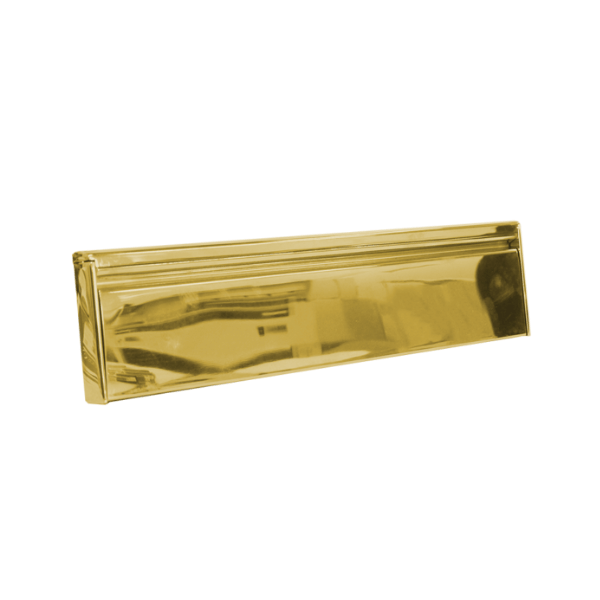

External frame sizes:

Width - 305mm
Height - 58mm
Distance between screw holes - 277mm
Cavity hole size - 54 x 259mm

Test evidence

TS008 classification
Secured by Design Police Preferred Specification and BSI Kitemarked
Cycle tested to 20,000 cycles
Document Q and PAS 24 compliant
Certifire approved
PAS24 tested (assists compliance with ADQ)*

* Tested as a safety critical component within timber doorsets & composite doorsets

This product is for limited use with 54mm foam/composite doors with timber stiles or timber doors only. This product has not been tested to TS008 on PVC doors.

Specs

Brand: UAP
Finish: PVD Gold
Height: 58mm
Width: 305mm
Fire Rating: FD60
