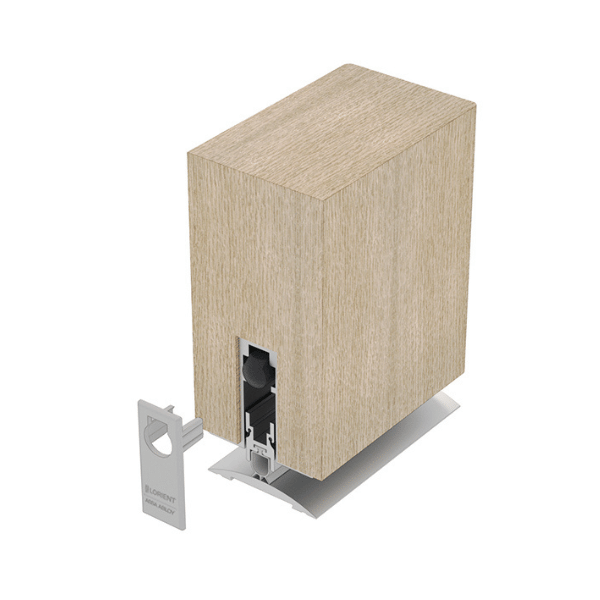

The Lorient LAS8005si is a slim-line, concealed drop seal featuring a high efficiency mechanism. The seal is lifted clear of the floor as soon as the door is opened by a few millimetres – resulting in exceptionally low door operating forces. It requires no power connection.
Certifire Certificate - CF5179
Fixing screws are provided.
Product Code: LAS8005/1135
Key benefits
Tested for acoustic performance with BS EN ISO 10140-2: 2010.
Meets the smoke leakage performance requirements of BS 9999 when tested in accordance with BS 476: Pt.31.1: 1983.
Tested for reliability, the seal completed 1,000,000 cycles without failure.
Can be fitted to aluminium doors by door fabricators.
Location
Single swing doors.
For use on both right and left handed doors.
Use with
Any perimeter seal.

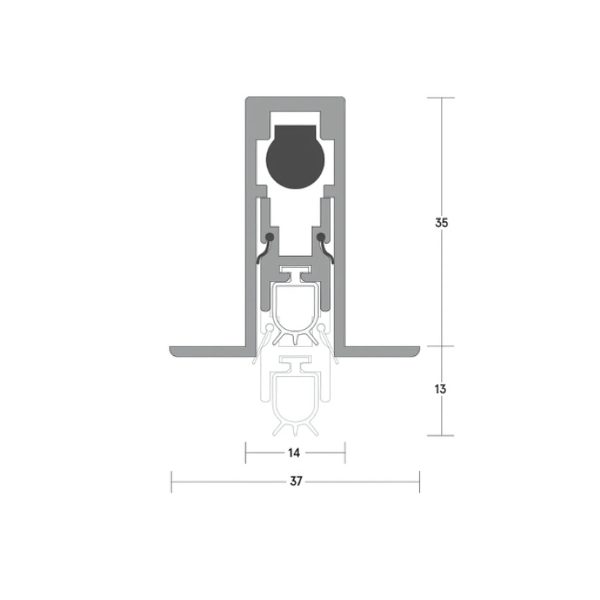

Min/max gap size
1mm/13mm.
Seal material
Grey silicone rubber.
Lengths
335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm and 1235mm.
Note: Each length can be cut to the next size down.
335mm can be cut back to 255mm.
Fixing
This seal is mortised, and screw fixed via the flanges. Fixing screws are supplied; fixing holes are pre-drilled and countersunk.
Adjustment
Self-levelling on uneven surfaces. Seal height can be adjusted independently of the fixing screws.
