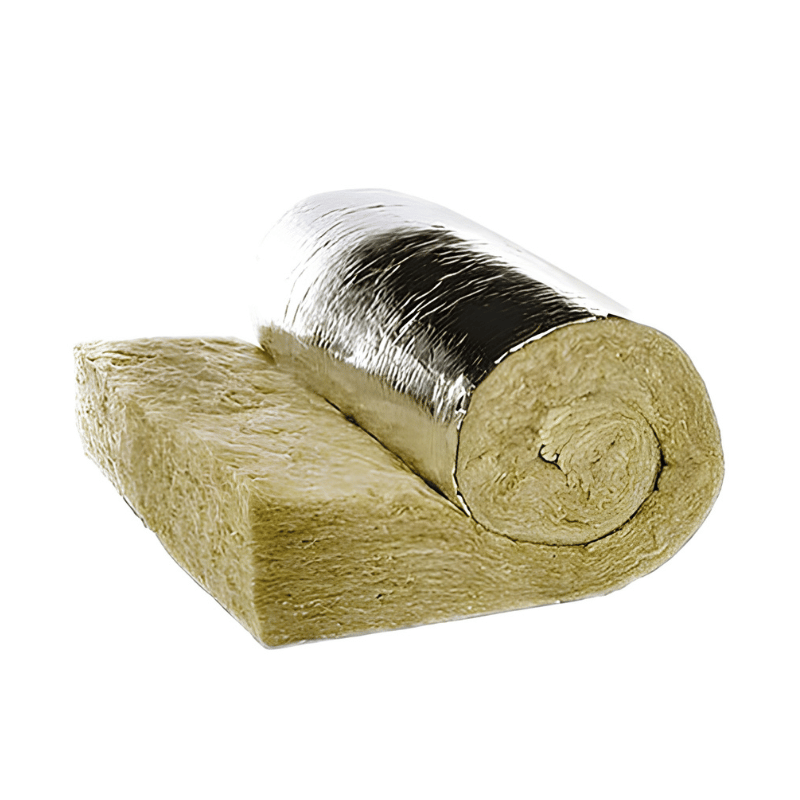

Nullifire FI025 Intuflex Insulation Wrap - 25mm x 200mm x 10m

Nullifire FI025 Intuflex is a premium fire insulation upgrade material designed to increase the insulation ("I") rating of uninsulated services penetrating fire compartment walls and floors. Manufactured from compressed rock mineral fibre with a durable foil facing, it effectively wraps around pipes, cables, and trays to safely reinstate the compartment's thermal integrity.

• Ensure tested compliance: Rigorously tested to meet exact standards for copper and steel pipes, cable trays, and bundles, taking the guesswork out of your certification.
• Maximise installation speed: The lightweight, flexible roll format is easy to cut and secure with standard lacing wire and foil tape, keeping your labour times down.
• Maintain cable performance: Engineered to not de-rate electrical cables, ensuring you won't compromise the electrical contractor's system specifications.
• Eliminate fibre migration: The outer foil layer prevents airborne fibres when correctly sealed, leaving a clean, professional, and aesthetically pleasing finish on-site.

FI025 is capable of providing up to an impressive 240 minutes fire rating, depending on the specific application and primary seal used. It is proven under EN 1366-3 across a wide variety of services, including steel and copper pipes up to 160mm in diameter, and cable bundles up to 100mm. Note that this wrap increases the insulation performance of the penetrating service itself, meaning your primary fire seal must independently meet the compartment's baseline requirements.

Specifications:

• Material: Compressed rock mineral fibre with single-sided foil face
• Dimensions: 25mm (Thickness) x 200mm (Width) x 10m (Length)
• Density: 45 kg/m³
• Fire Rating: Up to 240 minutes (application dependent)
• Application Temperature: +5°C to +60°C

To achieve a fully compliant, zero-fibre migration finish, you will require Nullifire FS702 Intumastic for gap sealing, 30-micron aluminium foil tape for joints, and 0.9 gauge lacing wire to securely fasten the wrap.
