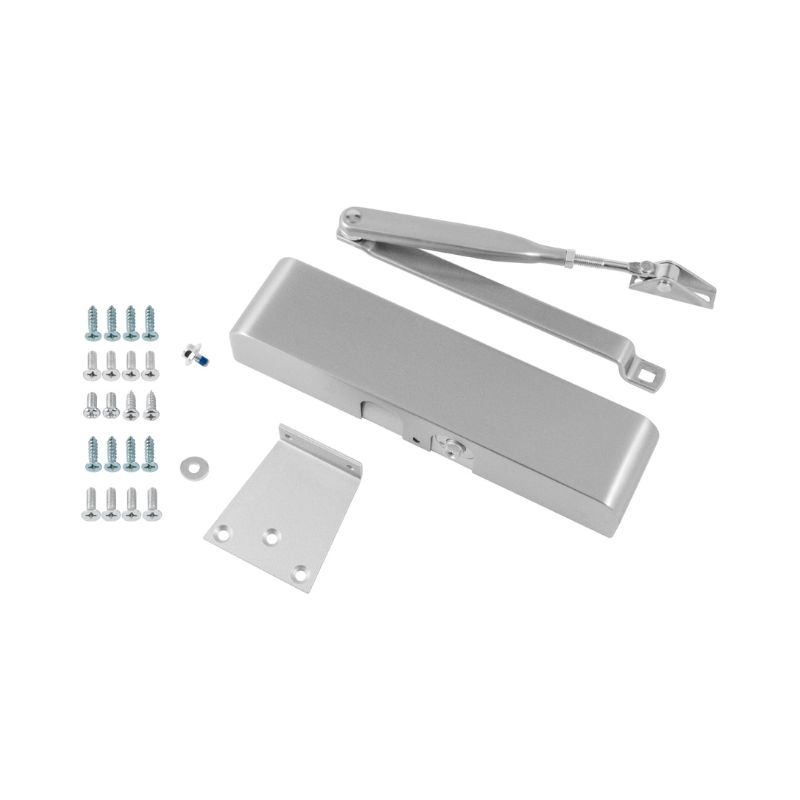

The Eclipse 83 Series is an adjustable EN size 2-4 overhead door closer designed to provide reliable, automatic closing for fire-rated doors in commercial, public, and residential buildings. This closer is a complete solution for ensuring fire door assemblies are fully compliant and will operate safely and effectively.
On a fire door, compliance is non-negotiable. This closer eliminates the risk by holding full Certifire (CF5488), UKCA, and CE approval for timber doors up to FD120. Fitting a fully accredited closer provides the proof you need to meet all fire safety standards.
Engineered for efficiency, the 83 Series closer is fully adjustable on-site. The spring power can be set to size 2, 3, or 4, making it a versatile unit that covers a wide range of door weights and sizes. Independent valves for closing and latching speed allow you to fine-tune the door's operation, preventing slamming and ensuring it overcomes seals or air pressure to latch securely every time.
Backed by a 10-year mechanical guarantee and tested to BS EN 1154, it's a reliable component you can fit and forget.
- Certification: UKCA, CE, Certifire (CF5488)
- Performance Standard: BS EN 1154
- Fire Rating: BS EN 1634-1 approved for 30, 60 & 120 minute timber doorsets
- Power Size: Adjustable EN 2-4
- Mechanism: Rack & Pinion
- Max Door Width: 1100mm
- Max Door Weight: 80kg
- Adjustments: Adjustable Closing Speed, Adjustable Latching Action
- Guarantee: 10 Year Mechanical Guarantee
