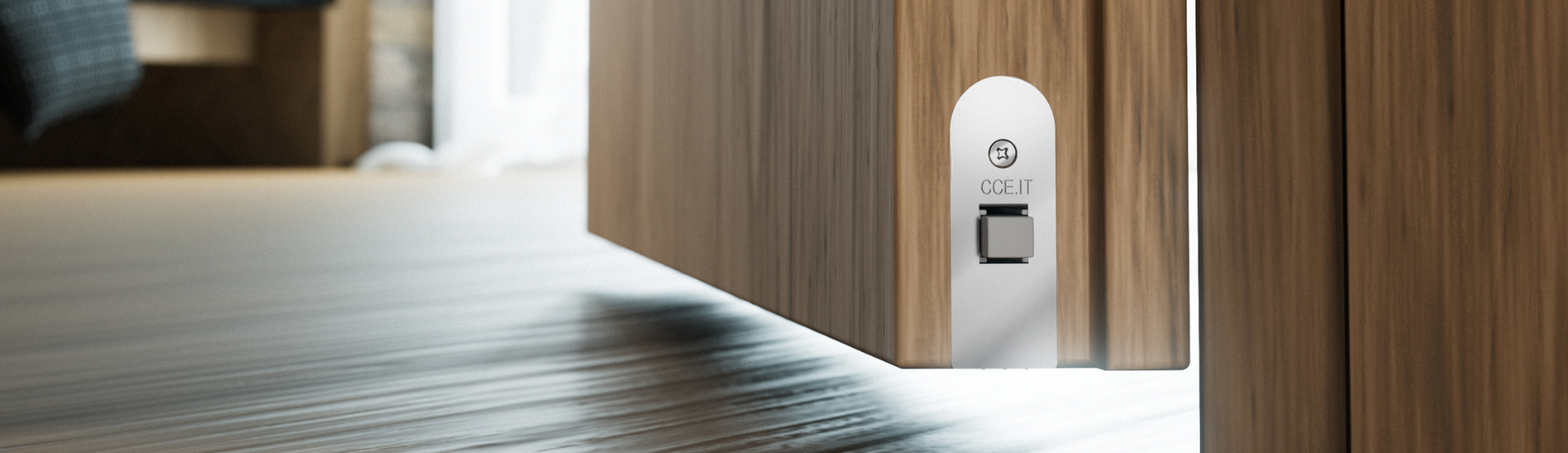

What is the Superior?
The Superior is a brand new drop down door seal model from CCE, the manufacturer of the popular Applique drop down seal.
This high-performance, rebated model is designed to stop fire and smoke from passing under a door, as well as forming an effective barrier against noise, light, insects, and the outside climate.
The seal mechanism is activated by the closing action of the door, meaning the seal only drops down when the door is closed, and self-levels on uneven surfaces.
Who are CCE?
Founded in 1980, CCE has more than 40 years experience in the sector of drop down door seals for fire, smoke, and acoustic capabilities.
Based out of Italy, CCE are known for their top quality and dedication to research and development. Their research into materials has led to successful testing of 60 or 120 minutes fire resistance carried out according to the latest BS EN 1634-1:2000 standard.
Operating in more than 55 countries, they guarantee products of the very highest quality, which are certified by prestigious international institutes.
What are the key features of the Superior?
Applications
- Suitable for timber, security and fire doors
- Can be cut down by up to 150mm
- Maximum drop: 17mm
- Rebated
Testing
- Certifire approved
- Fire tested to BS EN 1634-1:2014 to 120 minutes
- Smoke tested to BS EN 1634-3: 2004
- Guaranteed acoustic rating of 48dB Rw
- Endurance tested to 200,000 cycles
Benefits
- Self-extinguishing
- Self-levelling on uneven surfaces
- European manufactured
- Simple cost effective installation
- Available in a wide range of sizes
- Reduces air leakage and can reduce energy costs
- Longevity due to its rebated design
The advantages of a rebated drop down seal
A rebated drop down seal such as the Superior is fitted by routing out a channel in the bottom of the door into which the seal can be fitted. This differs from a surface mounted drop down seal which can be fitted to the exterior of the bottom of the door.
Due to the doors needing to be removed from the frame during installation, rebated drop down seals are usually used in new doors rather than in retrofitting or upgrading existing doors, however they offer a range of benefits that may suit certain projects:
Benefits
- Ideal for high traffic environments and more demanding contexts where the door may be regularly bumped or kicked i.e. schools, hospitals and residential corridors
- Neatly installed inside the door providing a sleek aesthetic finish
- Long lasting due them being protected within the door
- Suitable for wheeled traffic such as wheelchairs and hospital beds
As has been outlined above, the Superior range brings a whole host of benefits to a variety of fire door projects, coming from a reliable manufacturer with strong test evidence, and is a model we are proud to stock.
